Φ65mm Tungsten Carbide Shaft Sleeve | Precision Cemented Carbide Bushing Ring for Industrial Centrifugal Pumps
Netfang：

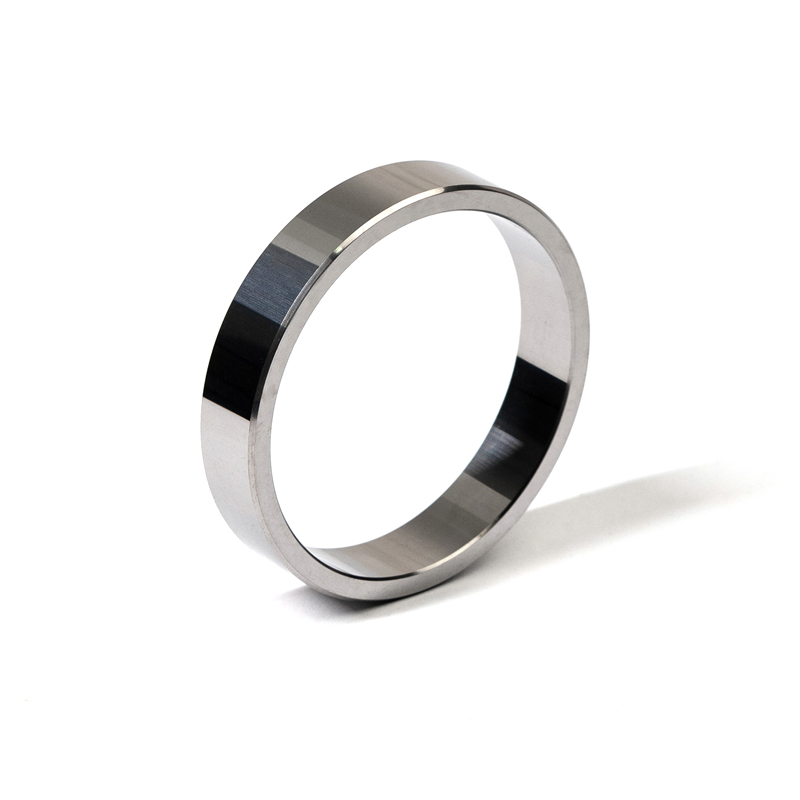

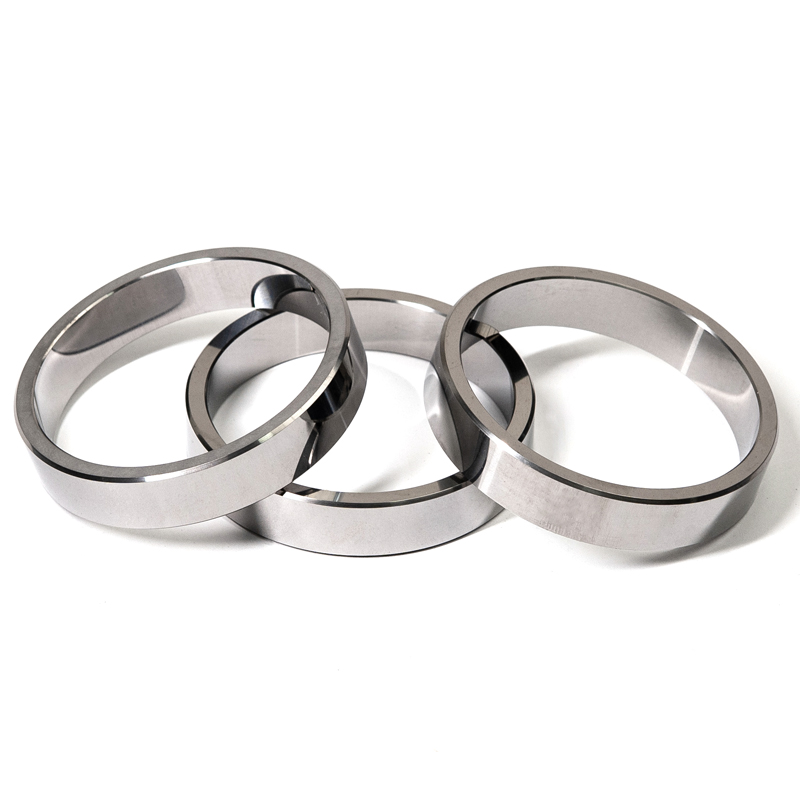

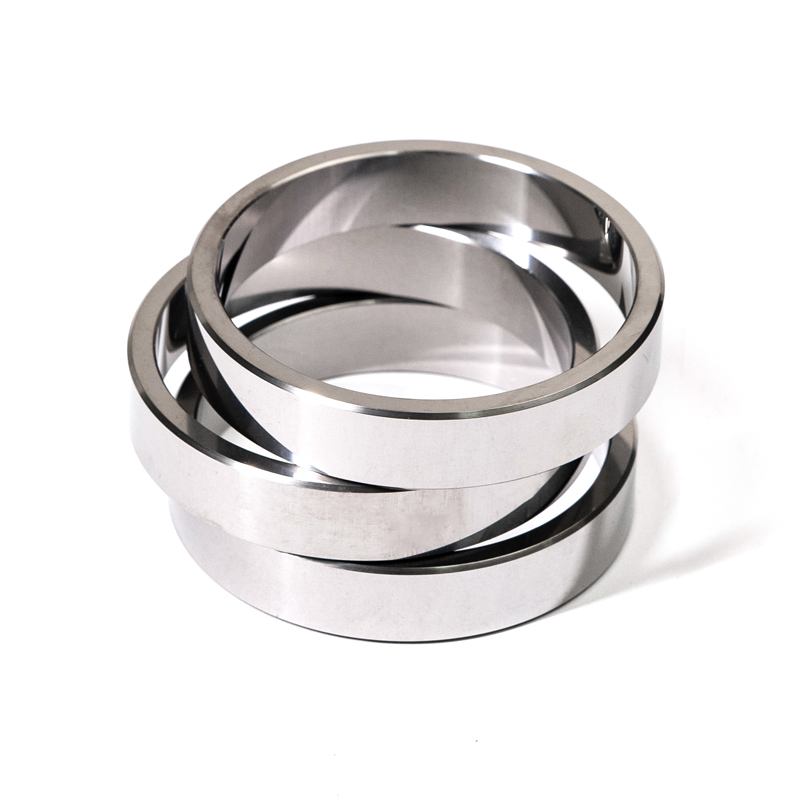

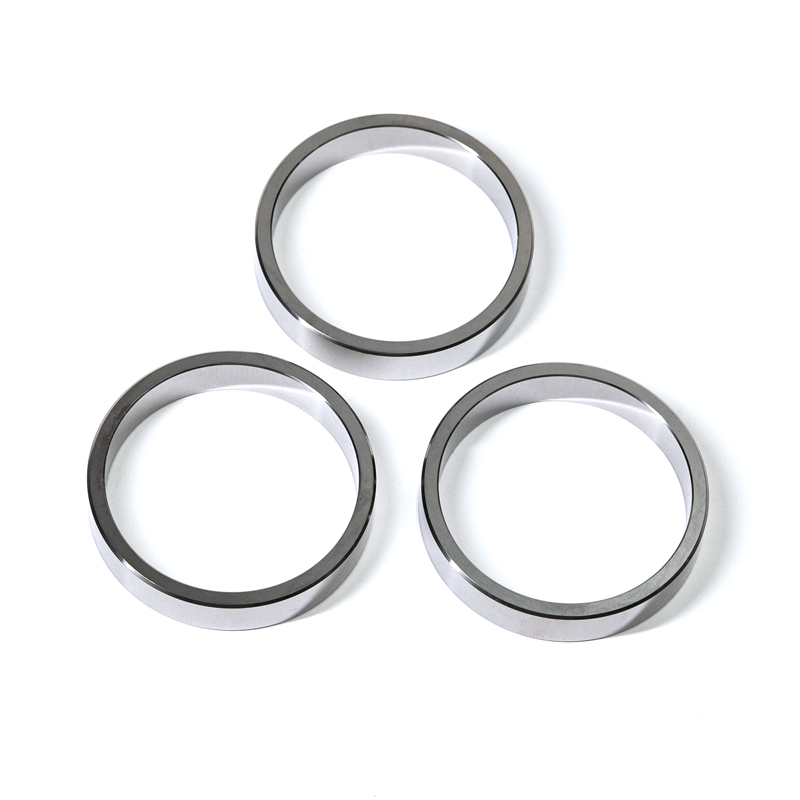

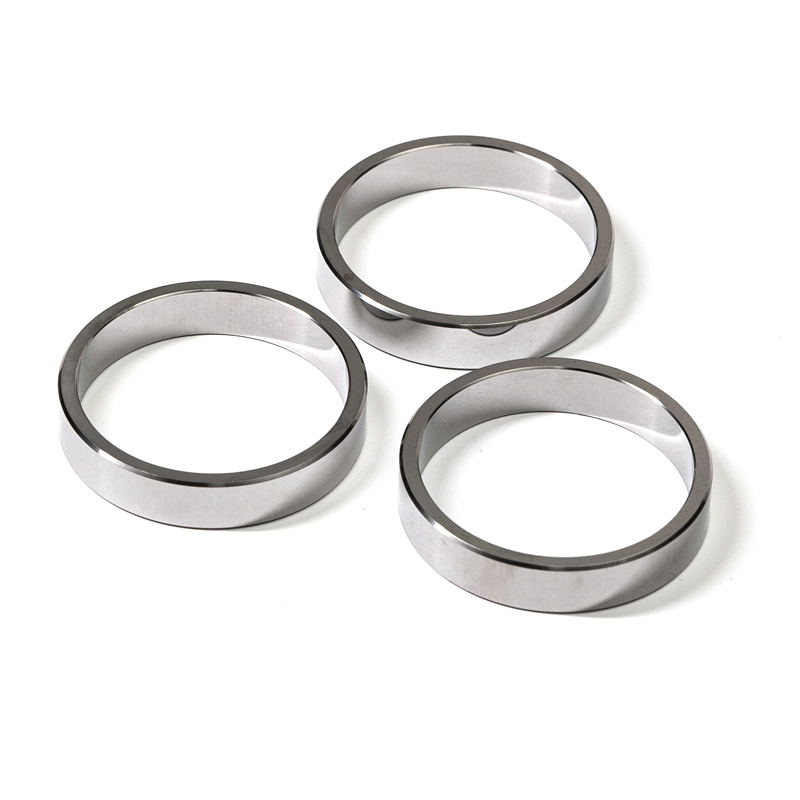

Φ65mm Tungsten Carbide Shaft Sleeve | Precision Cemented Carbide Bushing Ring for Industrial Centrifugal Pumps
Product Overview
Protect your rotating machinery from premature mechanical failure with our high-precision Tungsten Carbide Shaft Sleeve. Specially engineered for high-velocity and harsh-fluid environments, this cemented carbide wear ring acts as a sacrificial, yet ultra-durable barrier that shields critical pump shafts from intense friction, abrasive slurries, and corrosive media.
Manufactured via advanced powder metallurgy and precision-ground to micrometer tolerances, our carbide bushings offer an incredibly low friction coefficient and superior geometric accuracy. They are the ideal choice for demanding fluid handling systems where standard stainless steel or bronze sleeves fail.
Technical Specifications
Please review our standard dimensional capability range for this diameter classification to match your tool holder or shaft assembly:
| Technical Parameters | Specification Specification / Capability Range |
| Material Base | Premium Tungsten Carbide (Cemented Carbide) |
| Nominal Outer / Inner Diameter | 65mm Classification |
| Dimensional Tolerance | Down to 0.005 mm (Micron Level) |
| Surface Roughness (R_a) | (Mirror Polished) |
| Common Grade Selections | YG6, YG8, YG15, YN6, YN9 |
| Primary Functional Benefit | Absolute Anti-Galling, Abrasive Slurry & Friction Protection |
Tungsten Carbide Sleeve Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 2200 |
| YG6X | 6 | 14.9 | 91.0 | 2300 |
| YG8 | 8 | 14.7 | 89.5 | 2800 |
| YG12 | 12 | 14.2 | 88.0 | 2500 |
| YG20 | 20 | 13.5 | 85.5 | 2850 |
Tungsten Carbide Sleeve Nickel Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 2100 |
| YN6X | 6 | 14.8 | 90.5 | 2100 |
| YN8 | 8 | 14.6 | 88.5 | 2300 |
Typical Industry Applications
This carbide bushing component is highly recommended for:
Fluid Transport & Pumps: Shaft sleeves for centrifugal pumps, multi-stage slurry pumps, submersible oil pumps, and chemical dosing systems.
Mechanical Seals: Stationary or rotating faces and backup sleeves within industrial cartridge seals.
Compressors & Mixers: Heavy-duty bush liners for rotating shafts in petrochemical agitators and high-pressure gas compressors.
OEM/ODM Custom Manufacturing Capabilities
As a dedicated carbide manufacturer, we support comprehensive custom processing based directly on your engineering blueprints:
Custom Geometric Features: Bushings featuring integrated keyways, internal/external steps, lubrication grooves, oil holes, or dual-beveled leads.
Tailored Application Matching: Let us know your exact rotation speed (RPM), operating temperature, and chemical medium. Our engineers will select the optimum carbide grain size and binder content to balance fracture toughness against wear resistance.
Algengar spurningar:
Q1: Ertu verksmiðja eða viðskiptafyrirtæki?
Við erum verksmiðja með 12 ára framleiðslureynslu.
Q2: Hvar er verksmiðjan þín staðsett?
Við erum staðsett í Zhuzhou borg, Hunan héraði, þar sem er grunnur úr wolframkarbíði.
Q3: Er verðið samkeppnishæft?
Við höfum okkar eigin verksmiðju. Þökk sé sterku framleiðslu- og dreifingarkerfi lofum við að bjóða viðskiptavinum okkar samkeppnishæfasta verðið.
Q4: Eru vörurnar hágæða?
Já. Allar vörur verða prófaðar fyrir magnframleiðslu og við munum athuga eðliseiginleika, lögun og umburðarlyndi til að tryggja hæfar vörur fyrir sendingu.
