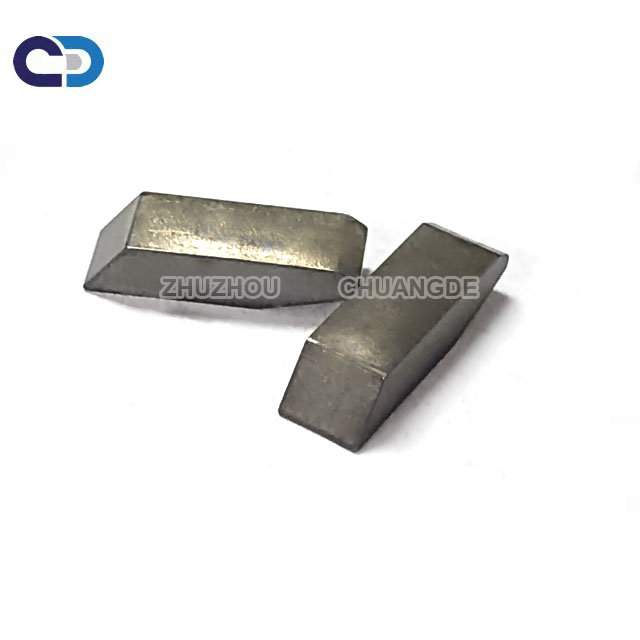

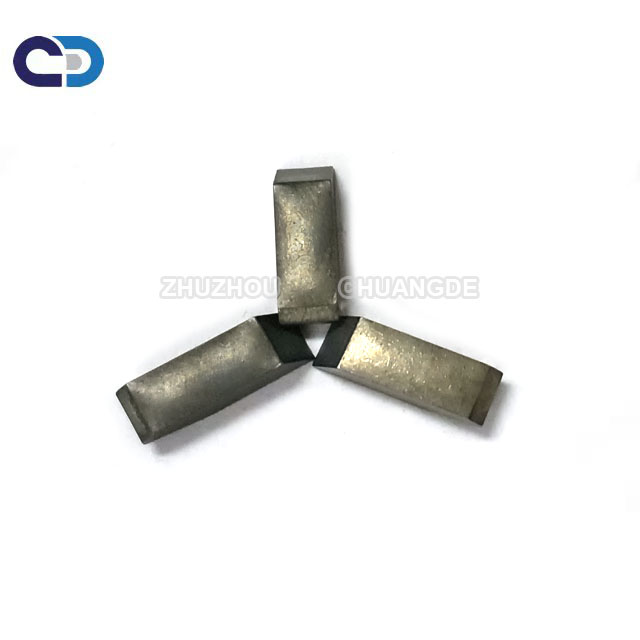

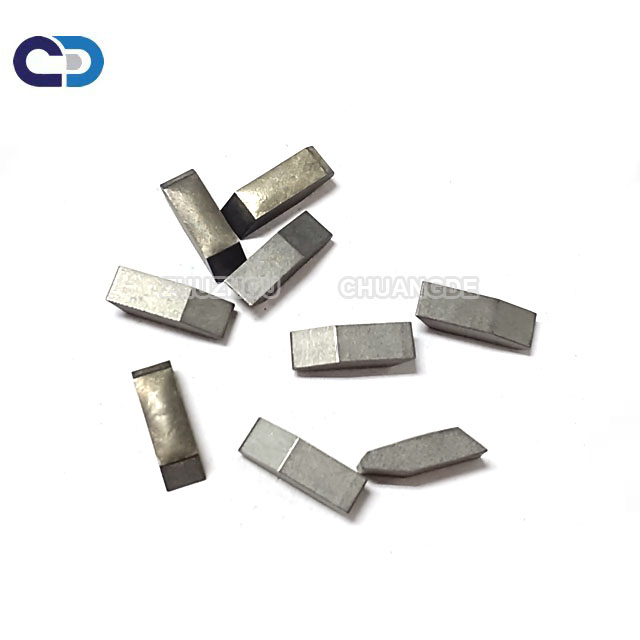

Manufacturer Pre tinned Tungsten Carbide Cutting Teeth Saw Blade Tips
Manufacturer Pre tinned Tungsten Carbide Cutting Teeth Saw Blade Tips
Product of manufacturer pretinned carbide cutting teeth saw blade tips
Tungsten carbide saw tip is used as the tips for the TCT saw blade for cutting all kinds of original wood, hard wood, HDF, MDF, plywood, particle board, laminated board, composite material, grass, aluminum and metals. It can give much more excellent performance than HSS .
Grade and application
Grade | Binder | Grain size | Density | USA Code | ISO Code | |||
(%) | HRA | ≥N/mm2 | ||||||
Wood cutting | CD3.0 | 3 | Extra super fine | 15.15 | 94.3 | 2600 | C4 | K01 |
CD3.3 | 3.3 | Extra super fine | 15.1 | 94.6 | 2400 | C4 | K01 | |
CD3.3X | 3.3 | Super fine | 15.2 | 94.6 | 2400 | C4 | K05 | |
CD5X | 4.8 | Super fine | 14.95 | 94.1 | 2400 | C4 | K05 | |
CD5XX | 5 | Super fine | 14.95 | 93.6 | 2800 | C3 | K10 | |
CD5.0X | 5.5 | Super fine | 14.85 | 93.6 | 2400 | C3 | K10 | |
CD6.0 | 6 | Fine | 14.9 | 92.7 | 3000 | C3 | K10 | |
CD6.1 | 6 | Fine | 14.9 | 92.7 | 3000 | C3 | K10 | |
CD8.0 | 8 | Fine | 14.7 | 91.9 | 3200 | C3 | K10 | |
CK10 | 6 | Media | 14.9 | 91.3 | 2100 | C3 | K10 | |
CK15 | 7 | Media | 14.8 | 91 | 2300 | C2 | K20 | |
CK20 | 8 | Media | 14.7 | 90.2 | 2500 | C2 | K20 | |
CK30 | 9 | Media | 14.6 | 89.8 | 2600 | C1 | K30 | |
CK40 | 12 | Media | 14.3 | 88.8 | 2800 | C1 | K40 | |
Metal cutting | CD10F | 10 | Super fine | 14.5 | 91.8 | 3800 | C2 | K30 |
CD12 | 12 | Extra super fine | 14.15 | 92.2 | 3900 | C1 | K40 |
Surface treatment
Tungsten Carbide Woodworking Saw Blade Tips
Cemented Carbide Saw Teeth/ Tungsten Carbide Saw tips For Rip Saw
Plywood Sawing Blade Anti-Nail Cemented Carbide Saw Teeth/ Carbide Sawing Tips
Easy to Brazed by Manual brazing or Automatic Welding Cemented Carbide Saw Tip
DIMENSION (MM) (Please send us drawing to confirm )
Tolerance control standard request
(Length)(mm) | (Width)(mm) | (Thickness)(mm) | ||
L | Width ranges | TOL | TOL | TOL |
≤5 | W≤2 | ±0.05 | +0.06 -0.04 |
±0.05 |
2 | ±0.06 | |||
3.5≤W≤5 | ±0.07 | |||
5~7 | W≤2 | ±0.06 | +0.08 -0.04 |
±0.05 |
2 | ±0.07 | |||
4≤W≤6 | ±0.08 | |||
7~9 | W≤3 | ±0.08 | +0.08 -0.04 |
±0.06 |
3 | ±0.10 | |||
5≤W≤8 | ±0.12 | |||
9~13 | W≤3.5 | ±0.10 | +0.08 -0.04 |
±0.06 |
3.5 | ±0.12 | |||
6≤W≤10 | ±0.15 | |||
13~17 | W≤4 | ±0.12 | +0.10 -0.05 |
±0.07 |
4 | ±0.15 | |||
7≤W≤14 | ±0.18 | |||
17~20 | W≤4.5 | ±0.12 |
+0.12 -0.06 |
±0.08 |
4.5 | ±0.18 | |||
7≤W≤15 | ±0.20 | |||
Advantage
1.Strong production capacity. We own mature production technology, process, various TPA press, large tonnage of hydraulic press and HIP furnace from Germany , ensuring pressing(TPA ) quality and sintering capacity achieving 1 ton per time. We can guarantee uniformity and stability of mass production.
2.Strong R&D team. Professional engineers serve for clients, recommending product and grades as per your applications. They also offer best after-sale service.
3.Strong Mould R&D team. They support customization of products as per requirements, and ensure high working efficiency and product quality.
4.Successful cooperate case: We cooperate with clients in domestic and abroad, and get good feedback from them.
All materials are tested in terms of hardness , density and T.R.S before using.
FAQ:
Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
