T1816M06-120 Single Cut Tungsten Carbide Rotary Burr | 120mm Extra Long Shank Inverted Cone Trumpet Shape Carbide Rotary File

120mm Extra-Long Reach: Long-shank design provides effortless access to deep cavities, internal tubes, and narrow casting walls.

Aggressive Single-Cut Geometry: Continuous single spiral flute provides superior stock removal and maximum control on ferrous metals.

Precision Shape T Head: 18mm trumpet/inverted cone profile is perfectly engineered for reverse chamfering and sharp undercut deburring.

Premium Carbide Longevity: Micro-grain carbide head retains its sharp cutting edge up to 10x longer than standard high-speed steel (HSS) burrs.

Email：

info@cdcarbide.com

Feedback

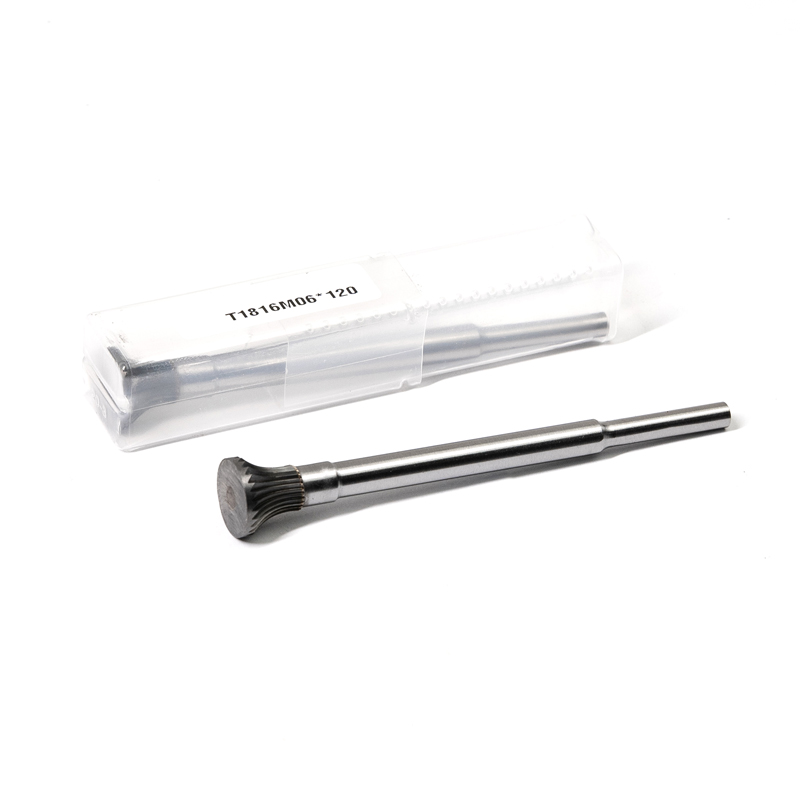

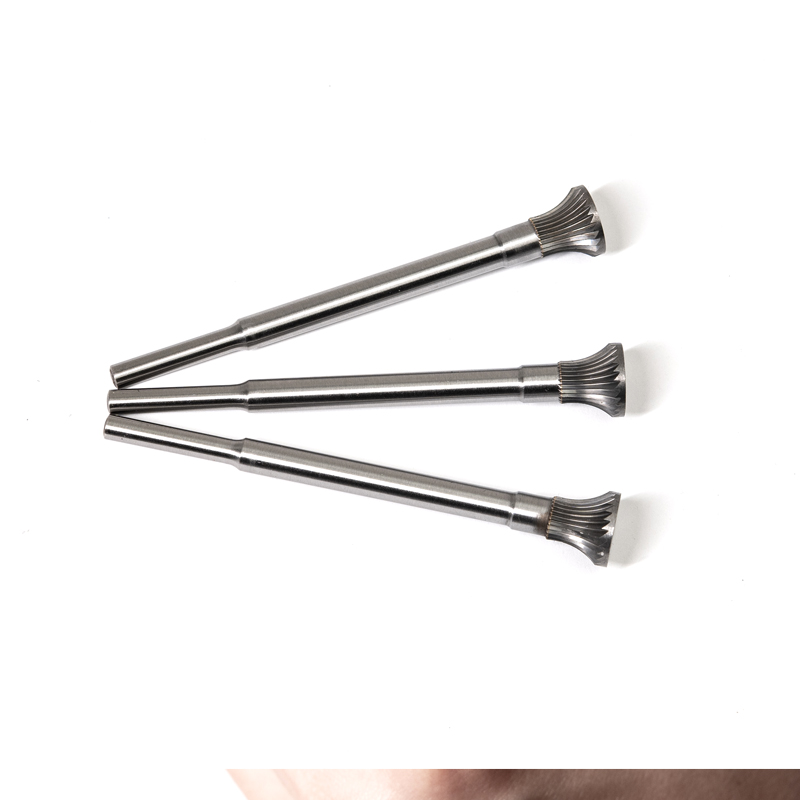

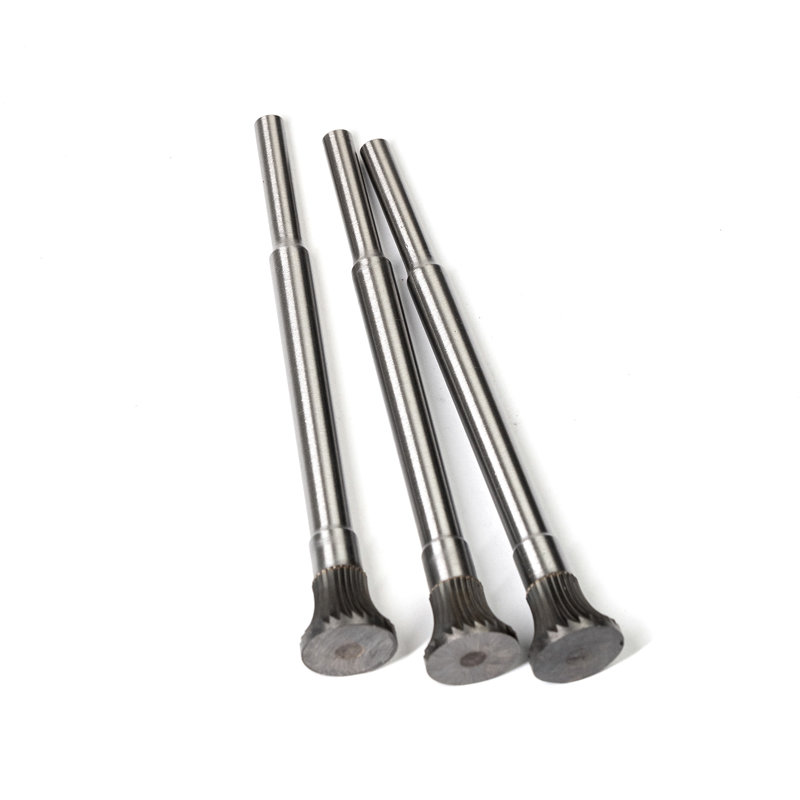

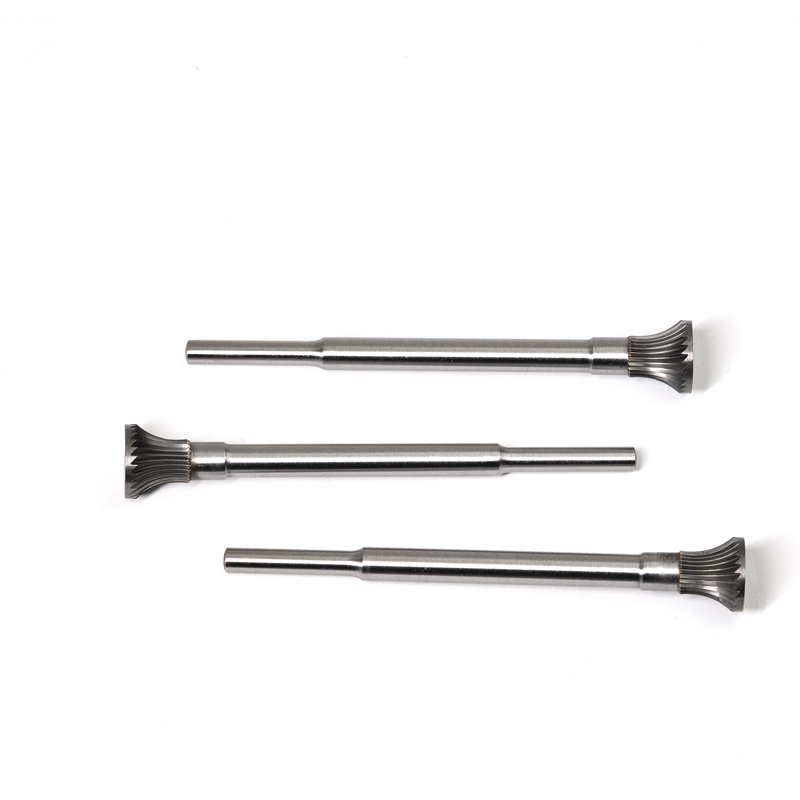

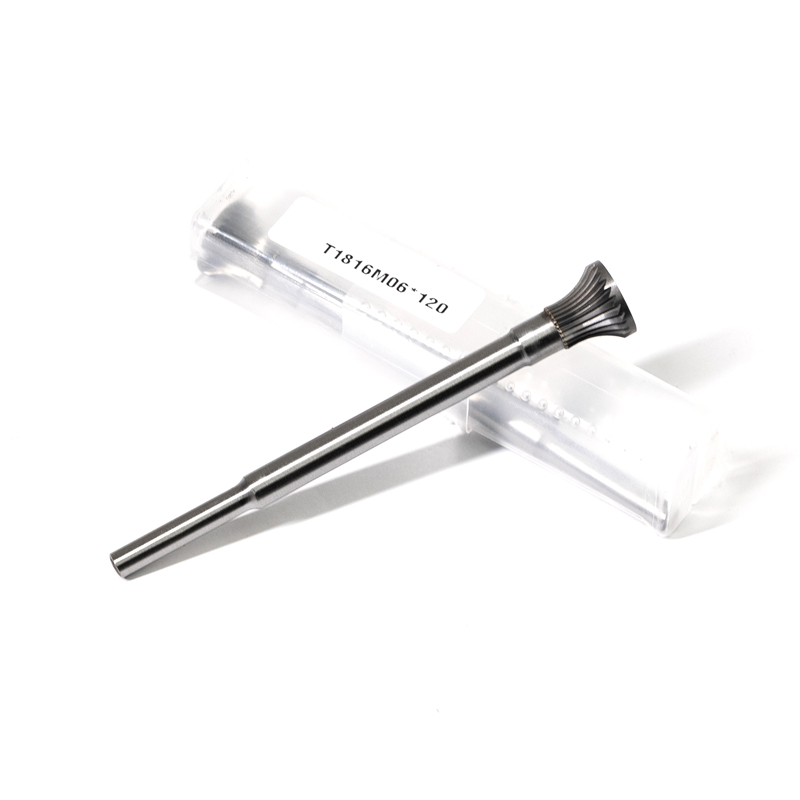

T1816M06-120 Single Cut Tungsten Carbide Rotary Burr | 120mm Extra Long Shank Inverted Cone Trumpet Shape Carbide Rotary File

Product Overview

Reach deep into complex mechanical assemblies and optimize your heavy-duty metal contouring operations with our premium T1816M06-120 Single Cut Tungsten Carbide Rotary Burr. Featuring an Inverted Cone / Trumpet Shape (Shape T) combined with a 120mm extra-long shank, this highly specialized rotary file is engineered for demanding deburring, grooving, and edge smoothing inside deep cavities where standard-length tools cannot reach.

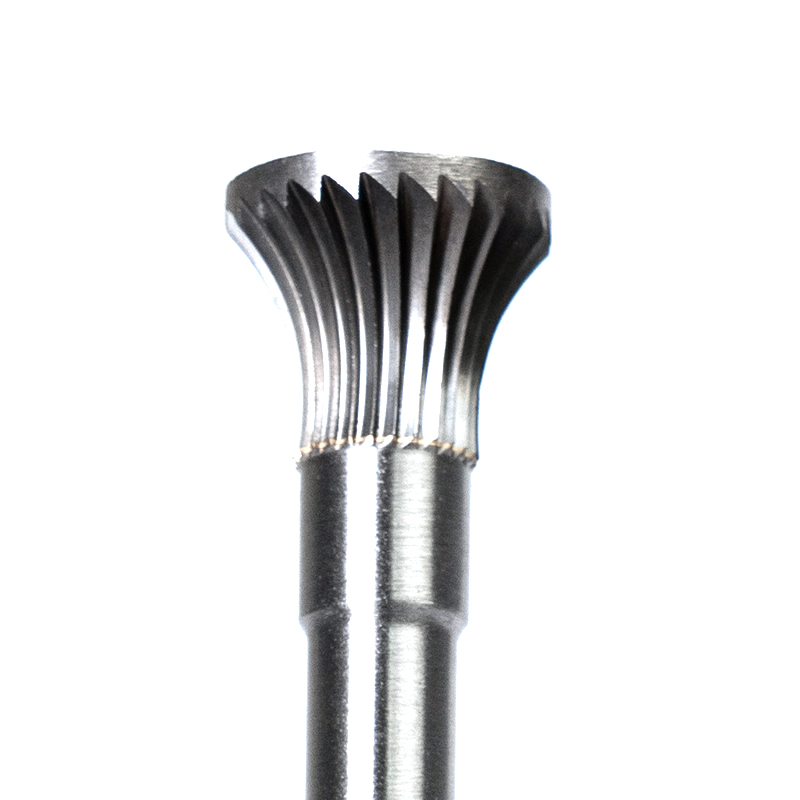

Designed with a precision-ground Single Cut (Single Flute) geometry, this burr features a continuous, aggressive spiral ridge line. Unlike double-cut burrs that produce fine, powdery slivers, the single-cut pattern produces long, continuous chips, offering superior material removal rates and a smoother operator experience when cutting ferrous metals, cast iron, and hardened alloys.

Technical Specifications (T1816M06-120)

Please check your pneumatic or electric micro-grinder collet dimensions against our factory technical standards:

Technical Parameter	Specification Value / Industrial Standard
Industry Head Shape Code	Shape T (Inverted Cone / Trumpet / Bell Shape)
Flute Cut Type	Single Cut (Single Spiral Flute)
Max. Head Diameter ( $d_1$ )	18.0 mm
Head Flute Length ( $l_1$ )	16.0 mm
Shank Diameter ( $d_2$ )	6.0 mm
Total Tool Length ( $l_2$ )	120.0 mm (Extended Long Reach)
Primary Target Materials	Cast Iron, Carbon Steel, Alloy Steel, Stainless Steel, Copper, Hardwoods

D1614 Alu Cut Tungsten Carbide Rotary Burr | Ball Shape Carbide Rotary File for Aluminum and Non-Ferrous Metal Grooving

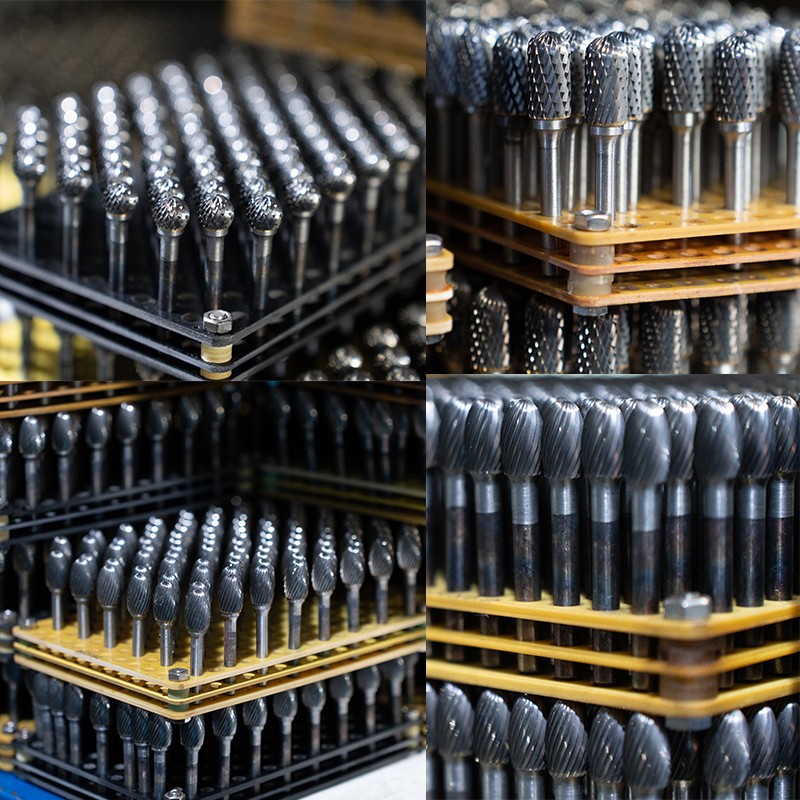

Packing and Shipping

正在上传...

FAQ:

Q1 : Are you Factory or trading company ?

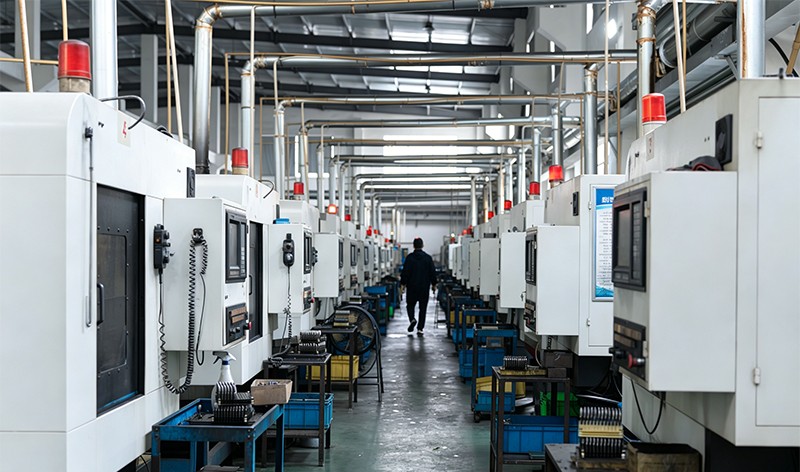

We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
