High-Performance Custom Tungsten Carbide Plates for Industrial Wear and Tooling Applications

Bespoke Engineering: 100% custom manufacturing based on your drawings (PDF/STEP/DXF). We provide expert technical consulting for optimal grade selection to ensure the best fit for your application.

Zhuzhou Factory-Direct: Sourced directly from the global carbide hub using 100% virgin powder. This ensures a stable supply chain and consistent, high-performance quality for every batch.

High Precision & ROI: Achieving tolerances up to $\pm 0.001mm$ with a service life 10x longer than steel. Our precision tooling maximizes your production efficiency and reduces long-term costs.

Competitive B2B Value: Factory-direct pricing with transparent quotes and flexible lead times. We offer dedicated support for

Email：

info@cdcarbide.com

Feedback

High-Performance Custom Tungsten Carbide Plates for Industrial Wear and Tooling Applications

Product Description

Description:

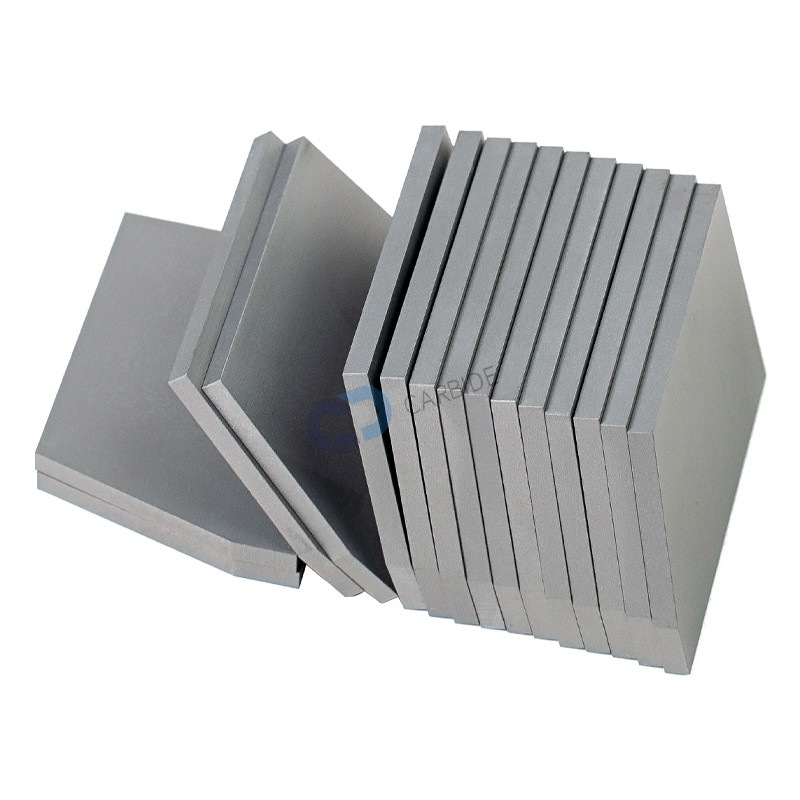

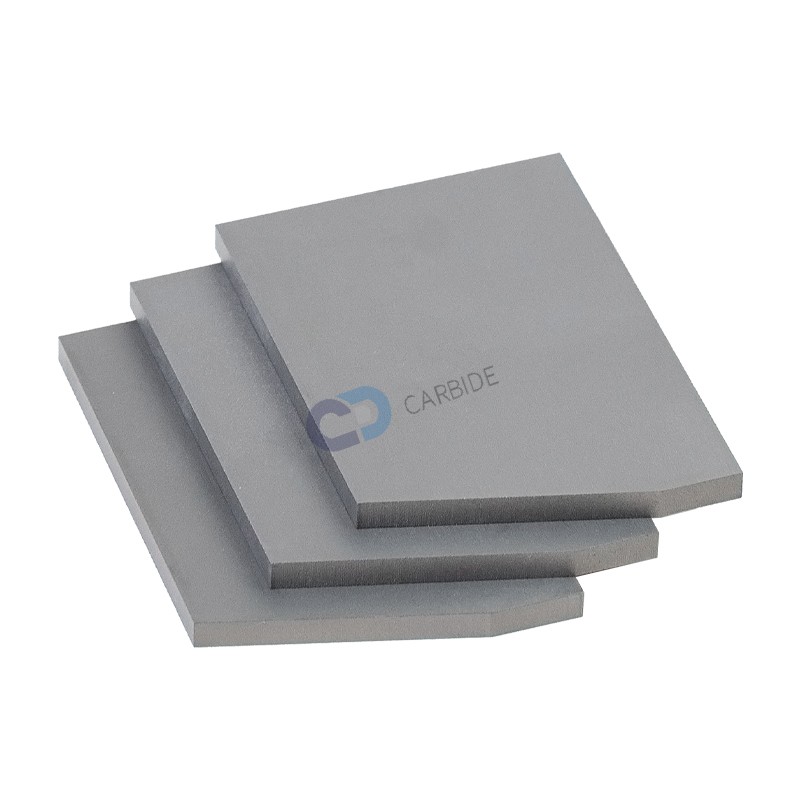

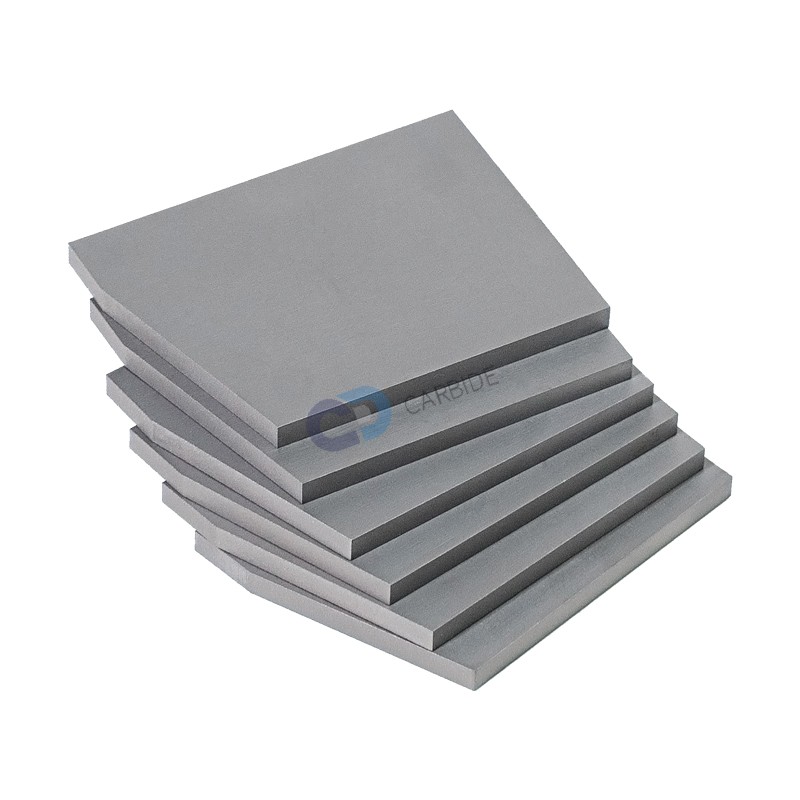

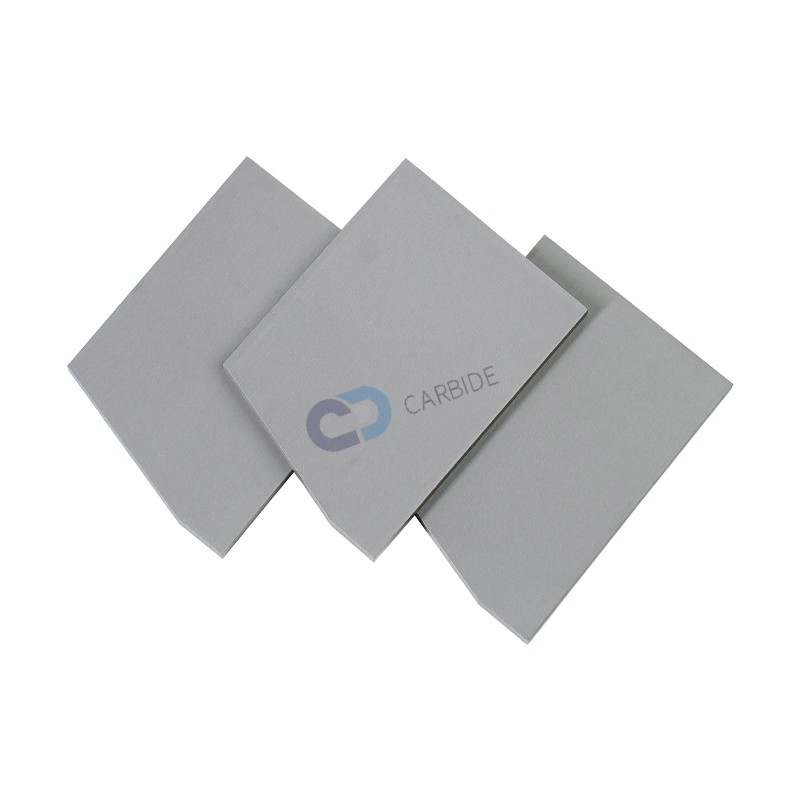

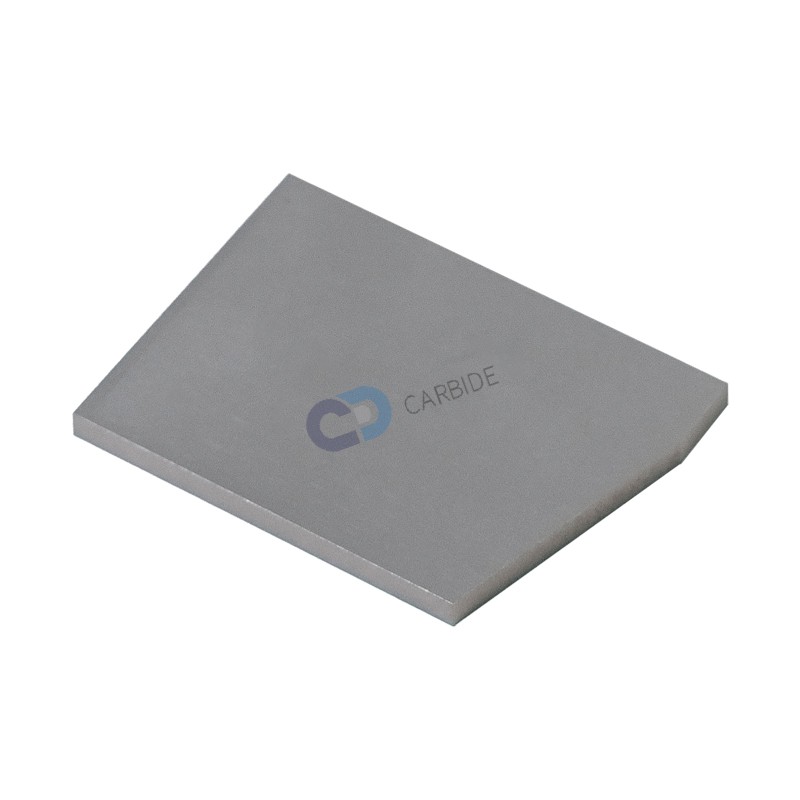

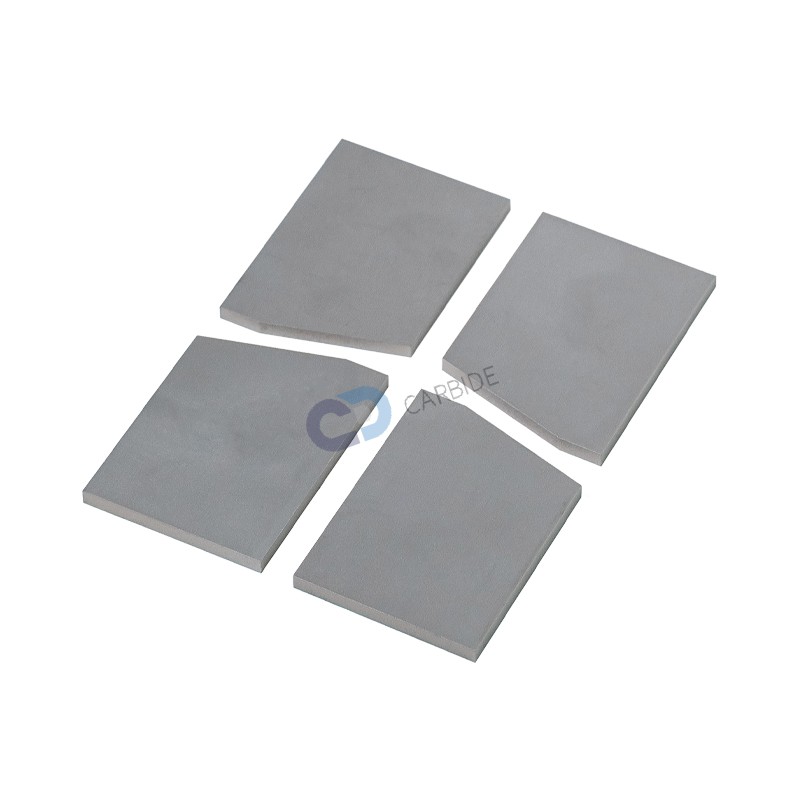

Tungsten Carbide Plates YG11 YG15 YG18 Hip sintering Features

1. 100% virgin tungsten carbide materials.

2. HIP Sintering and ground surface.

3. Composition: WC+Co, WC+TiC+TaC+Co.

4. ISO9001:2015 vertified professional manufacturer over 12 years.

5. OEM and ODM are accepted as well.

Tungsten carbide plates that are especially suitable for protecting surfaces against abrasive and erosive wear. The plates are made of tungsten carbide and can be adjusted with different chemical compositions to the requirements of each specific

Grade of Wear parts hard alloy widia cemented tungsten carbide board block bar plates

Grade	Density (g/cm3)	Hardness (HRA)	TRS (Mpa)
YG6	14.9	91.0	1800
YG6X	14.8	92.0	1800
YKM6A	14.7	92.5	1800
YG8	14.8	90.0	1950
YT5	13	90.8	1900
YT14	11.5	91.5	1500
YT15	11.3	91.8	1450
YW1	13.1	91.5	1600
YW2	13.1	91.0	1600
YS25	12.8	91.5	1900
YC30S	12.8	91.0	2000
ZP35	12.8	91.0	2000
YC40	13.2	90.0	1850

Factory custom K10 Tungsten carbide flat bars/plate/strip/sheet/block

Application

1. To make punching dies: It can be applied to the production of high-speed die and multi-station progressive die for punching copper, aluminum, stainless steel, cold-rolled sheet, hardware, standard parts, upper and lower punches, etc.

2. To make wear-resistant tools.

3. To make high temperature resistant parts, wear parts and anti-shielding parts. such as the guide rail of the machine tool and the anti-theft reinforcement board of the ATM.

4. To make corrosion-resistant parts for the chemical industry.

5. To used as radiation and corrosion resistant materials for medical equipment.

Dimension (mm) and shape （can be custom as your drawing and application）

Factory custom K10 Tungsten carbide flat bars/plate/strip/sheet/block

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
