Product Overview

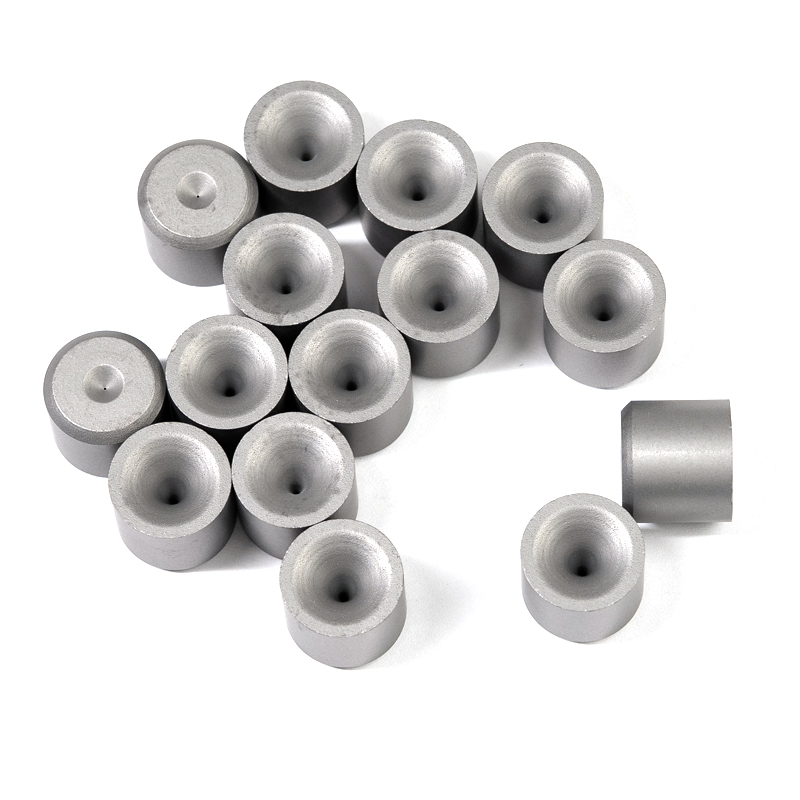

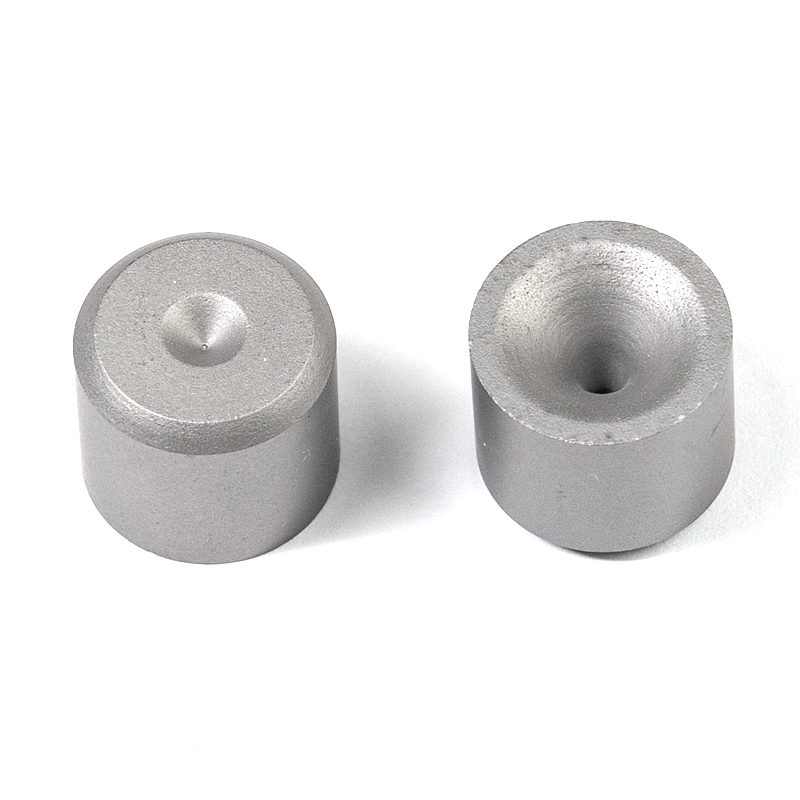

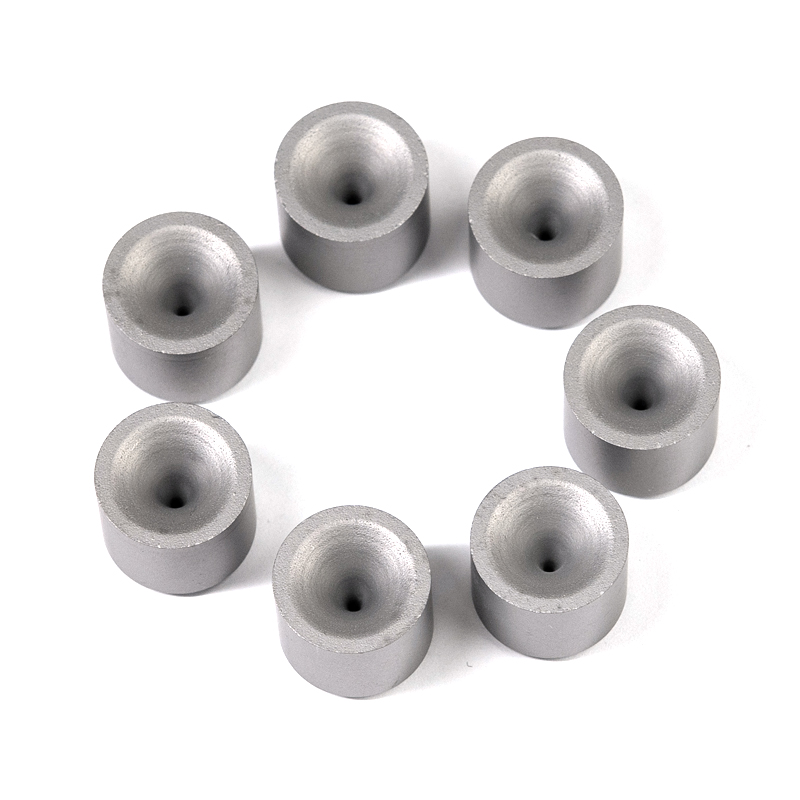

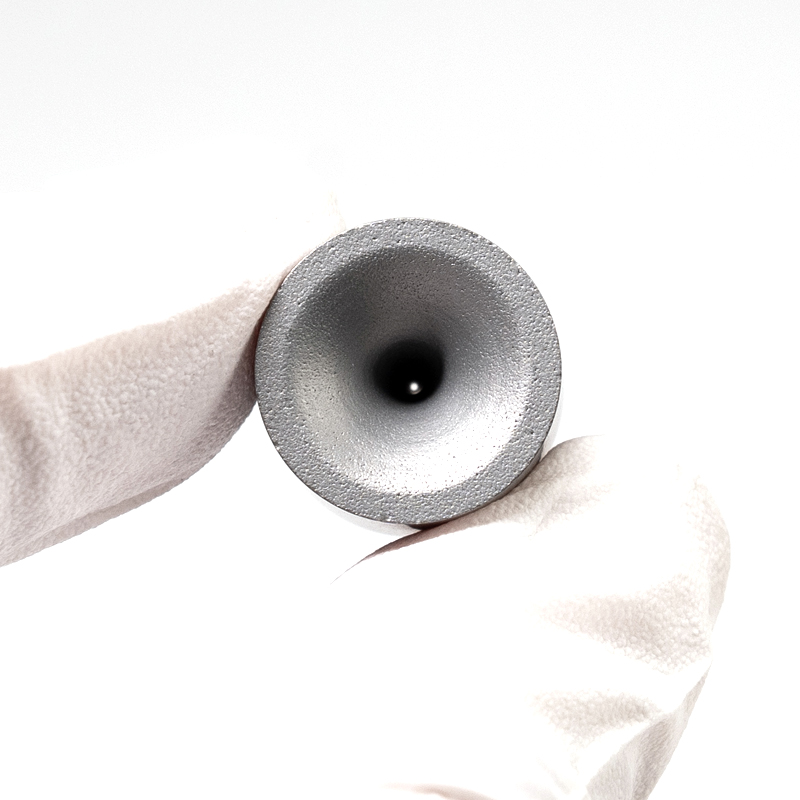

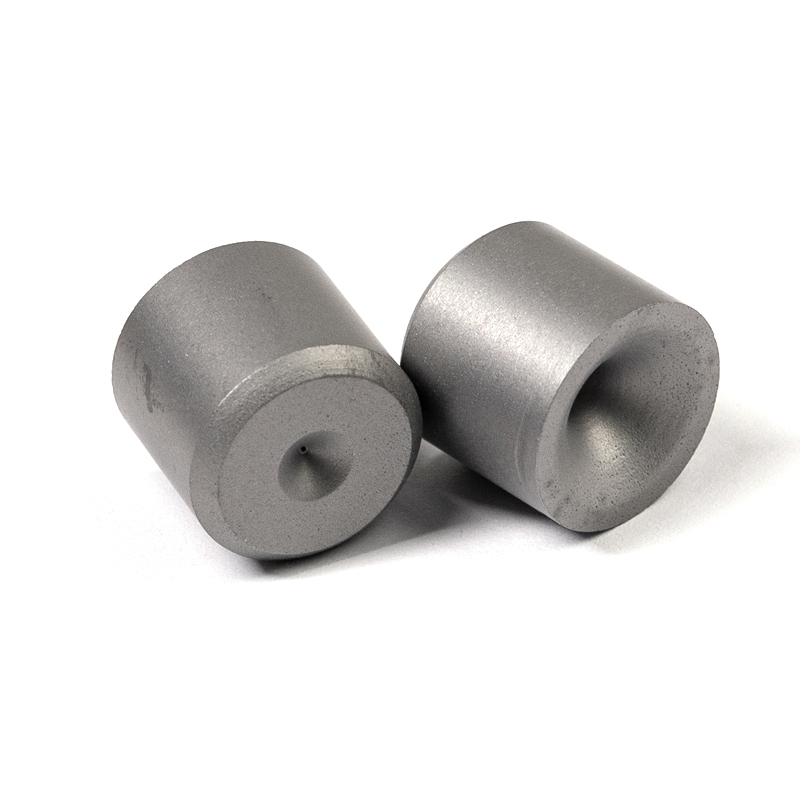

The S11 Series Tungsten Carbide Wire Drawing Die is a high-performance industrial die insert engineered for high-speed, continuous wire drawing operations across steel, stainless steel, copper, aluminum, and alloy wires. Manufactured from high-density tungsten carbide nibs cased in durable steel jackets, the S11 design features an optimized internal geometric profile (entrance, approach, bearing land, and back relief angles). It provides maximum wear resistance, exceptional deformation accuracy, and long service life during heavy-duty wire reduction passes.

Technical Specifications

• Series Model: S11 Standard Series

• Nib Material: Premium Micro-Grain Tungsten Carbide

• Casing Material: High-Strength Carbon Steel / Stainless Steel Casing

• Applicable Wire Materials: Steel wire, stainless steel, copper rod/wire, aluminum wire, brass, welding wire, and alloy wires.

• Internal Geometry Regions: Entrance Angle, Lubrication Zone, Reduction Angle (Approach Angle), Bearing Land (Sizing Zone), Exit Angle, and Back Relief.

• Surface Polish: Mirror-polished internal working profile (Ra 0.05 - Ra 0.1) for minimal friction and surface scoring.

• Customization: Custom hole diameters, reduction angles, bearing lengths, and casing dimensions available upon drawing specs.

2.Grade:

3.Application

1.Used for making high temperature parts, wear parts, anti-shielding parts and corrosion-resistant parts.

2. Used in making hardware and standard stamping moulds.

3. Applicable for electronic industry, motor rotor, stator, LED lead frame, EI silicon sheet and so on.
4. Used for producing drawn mold, wear-resistant parts, stamping parts and automatic press with punch.
5. Used for stamping die, extrusion die, stamping molds.
6. Drawing many kinds of steel wire, aluminum wire, high carbon, MS wire etc

Packing and Shipping

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is  base of  tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
